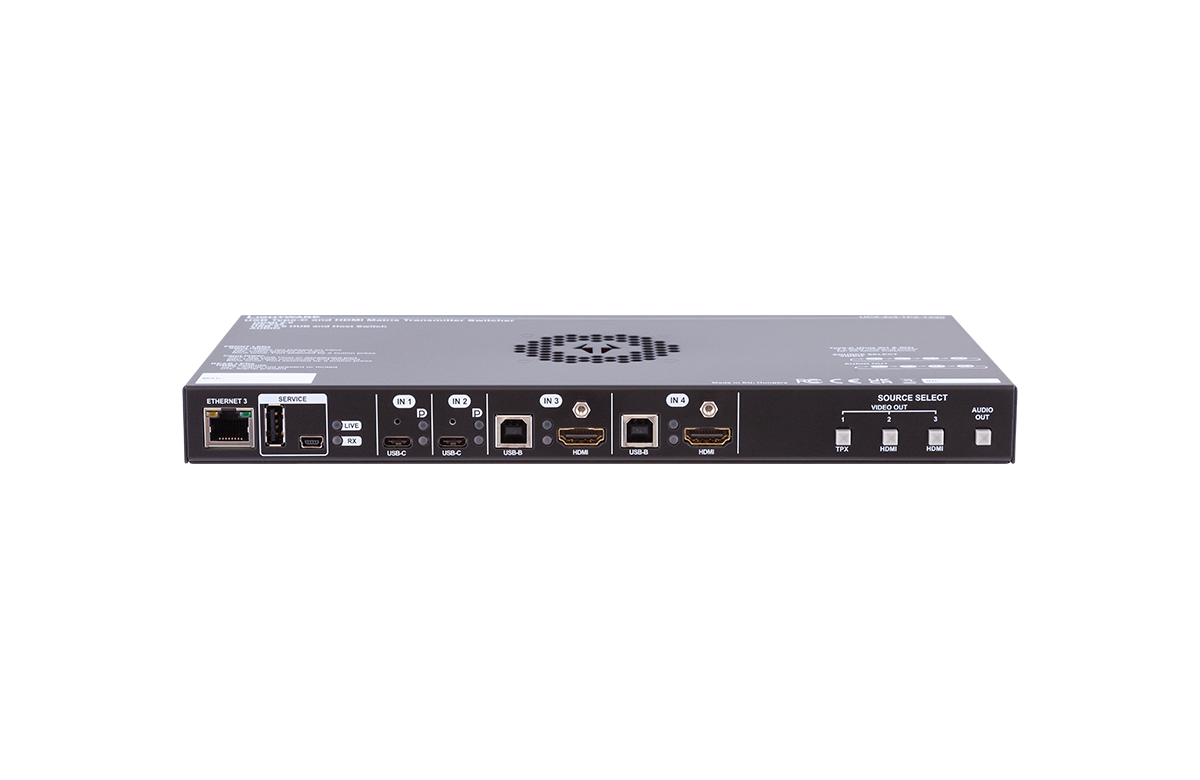

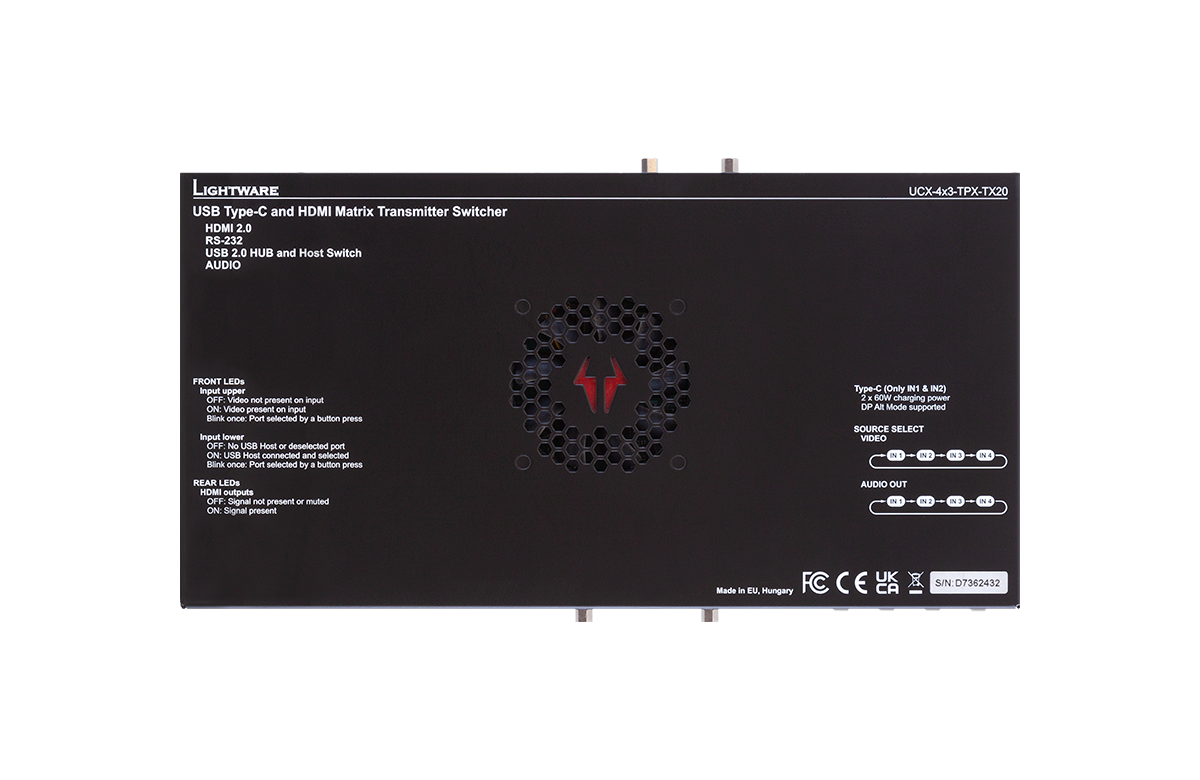

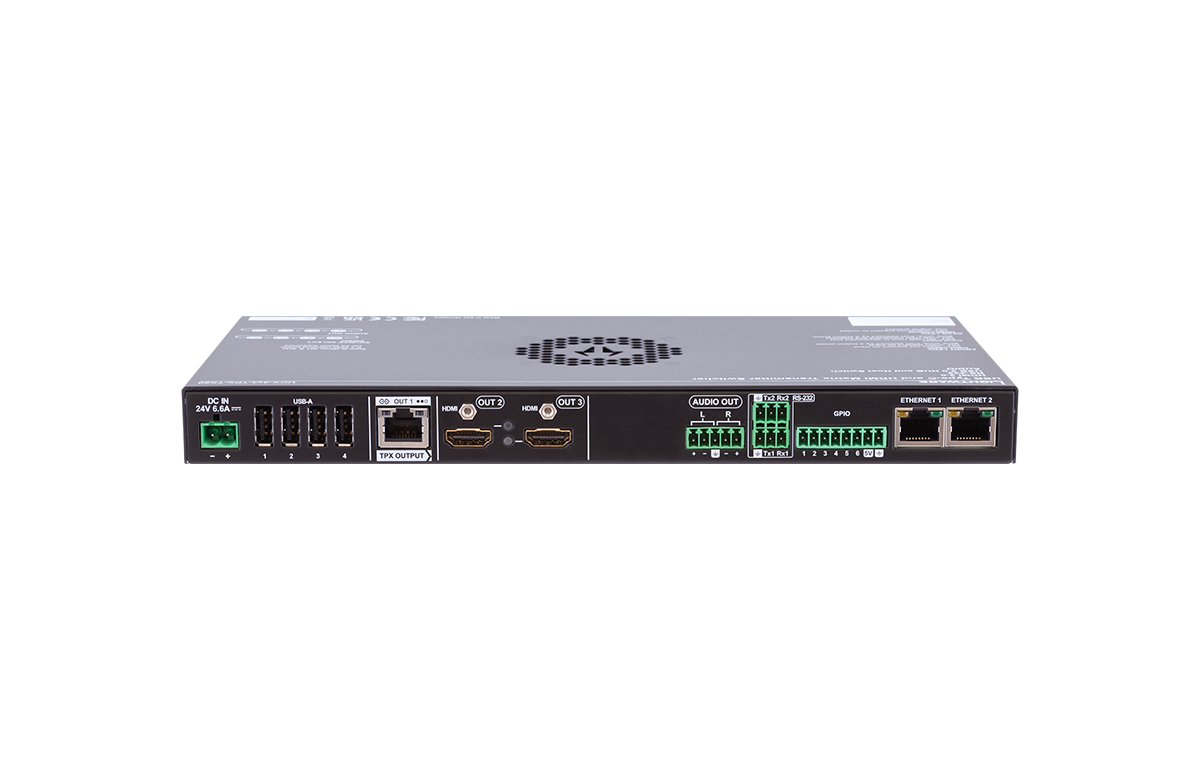

UCX-4x3-TPX-TX20
SKU: 91310091
ShippingUSB Type-C and HDMI Matrix Switcher Transmitter
Features
Single CAT connectivity between TX and RX devices, up to 100m, with Power delivery from TX to RX, Video, USB2.0, Ethernet, OCS and Serial
USB-C input connectivity on the TX device for 4K Video, Audio, Data, and Power (Video, Audio, Data and Power over a single USB-C connection)
USB-C charging up to 100W (120W total) on the TX
Multiple USB 2.0 connectivity for any type of USB device (Camera, speakerphone, touch monitor, USB-HID devices etc.) Both on the TX and the RX
Independent USB Host switching layer for multiple USB hosts, up to 8 devices (4x at the TX side, 4x at the RX side)
Room device control via Ethernet (TCP/IP) or Serial (2x at TX device, 1x at RX device)
Variant available with NIST FIPS 140-2 certified Lightware Crypto Core (UCX-4x3-TPX-TX20-LCC, SKU: 91360034)
Other Features
CEC
CEC at the HDMI outputs
LARA
Supporting Lightware Advanced Room Automation (LARA)
4K UHD
Supports uncompressed HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps, 600 MHz pixel clock)
Welcome screen
Welcome Screen for custom corporate logo and on-screen display warning messages
IT Security
SSH, SSL, and HTTPS for IT security
Ethernet
Multiple Ethernet network configurations fitting various corporate network topologies and IT security standards (e.g. 802.1x compliance)
Audio
Audio de-embedding
